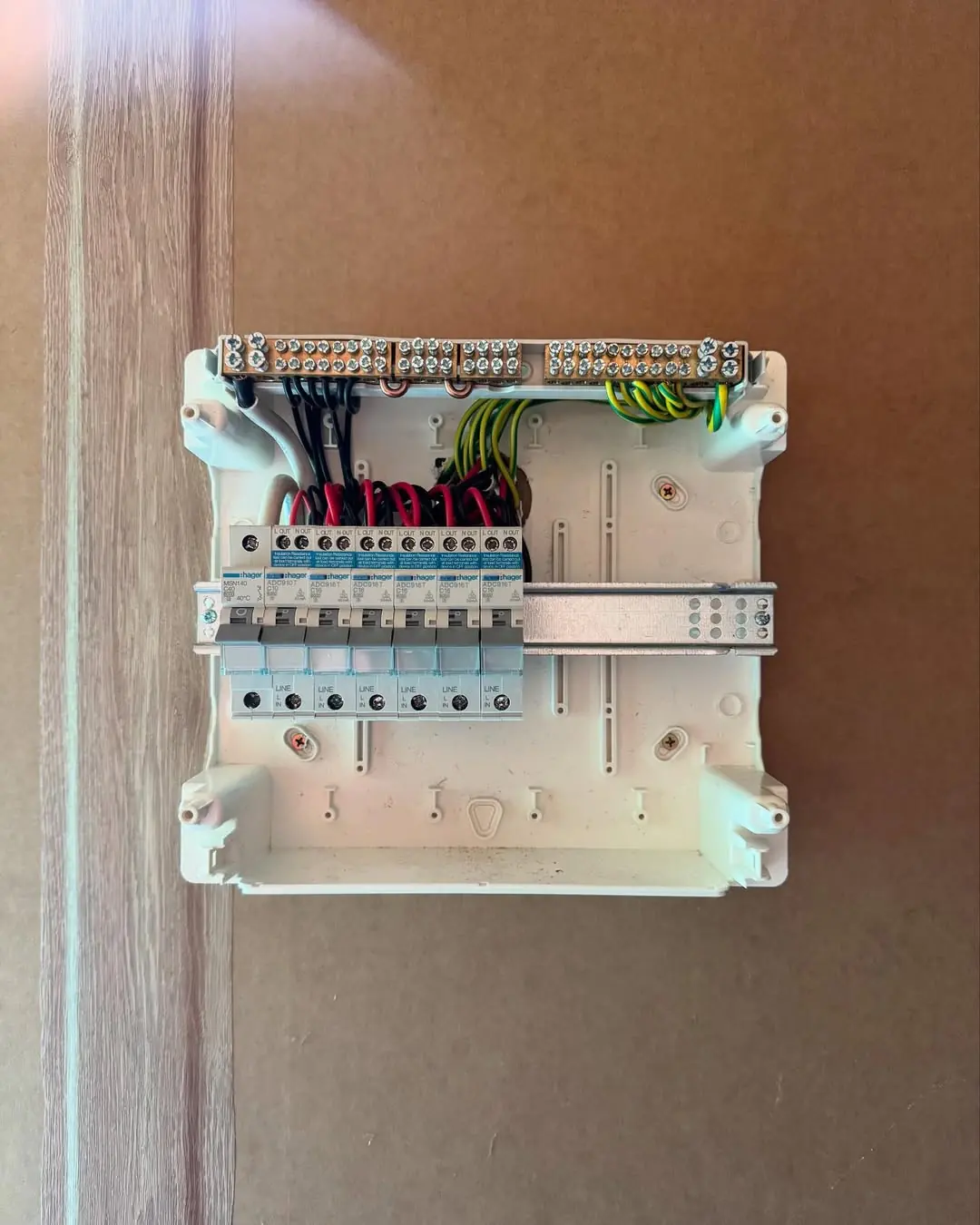

A new compact switchboard with circuit breakers and RCBOs, shown before the cover was fitted.
The photo shows a new compact switchboard with circuit breakers and RCBOs, taken before the cover was fitted. With the cover off you can see how the cables come in, are dressed along the board and terminate at each device, and that is the stage where an electrician's workmanship is visible.
An RCBO combines a circuit breaker and a safety switch in one device, so each circuit has its own earth leakage protection. If one circuit develops a fault, only that circuit switches off and the rest of the house keeps its power. A compact enclosure like this one suits smaller homes and units where wall space is limited.
Before a board like this is fitted, the existing circuits are checked so any faulty cable or overloaded circuit is found rather than carried over to the new board. Each circuit is then labelled so it can be isolated quickly later. Older Rozelle houses often have boards with rewireable fuses and no safety switches, and replacing them is one of the more useful safety upgrades for a home of that age.
The photo shows the board before its cover goes on, with the circuit breakers and RCBOs on the DIN rail and the neutral and earth bars along the top. If your Rozelle home still has an older board, our page on Inner West switchboard upgrades covers the signs to look for and what a replacement includes.
Learn more about switchboard upgrades and safety switches, or read RCD vs RCBO to see which suits your home. We are a licensed Rozelle electrician.
An RCD protects a group of circuits against earth leakage. An RCBO does the same job for one circuit and also includes overload protection, so a fault only affects that circuit.
They show how the board was wired and terminated, which is useful for records and for anyone working on the board later.
Yes. In NSW, switchboard replacement is electrical wiring work, and a Certificate of Compliance for Electrical Work (CCEW) is issued when it is done.
